System for noise and vibration diagnostics

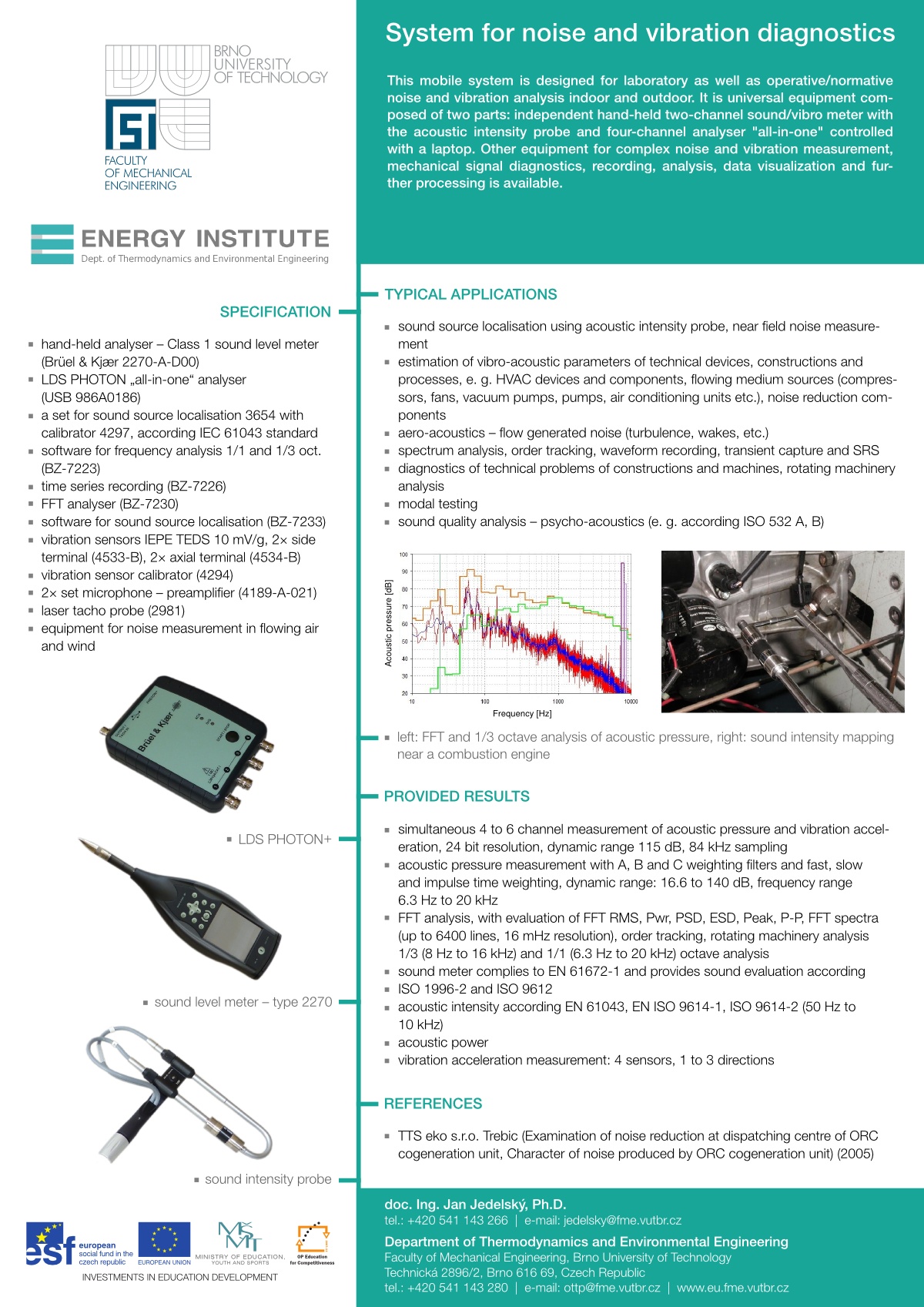

hluk-perex-02.jpg This mobile system is designed for laboratory as well as operative/normative noise and vibration analysis, both indoor and outdoor. It is universal equipment composed of two parts: independent hand-held two-channel sound/vibro meter with the acoustic intensity probe and four-channel analyser "all-in-one" controlled with a laptop. Other equipment is available for complex noise and vibration measurement, mechanical signal diagnostics, recording, analysis, data visualization and further processing.


  • hand-held analyser – Class 1 sound level meter (Brüel & Kjær 2270-A-D00)
  • LDS PHOTON "all-in-one" analyser (USB 986A0186)
  • a set for sound source localisation 3654 with calibrator 4297, according IEC 61043 standard
  • software for frequency analysis 1/1 and 1/3 oct. (BZ-7223)
  • time series recording (BZ-7226)
  • FFT analyser (BZ-7230)
  • software for sound source localisation (BZ-7233)
  • vibration sensors IEPE TEDS 10 mV/g, 2× side terminal (4533-B), 2× axial terminal (4534-B)
  • vibration sensor calibrator (4294)
  • 2× set microphone – preamplifier (4189-A-021)
  • laser tacho probe (2981)
  • equipment for noise measurement in flowing air and wind


Typical applications

  • sound source localisation using an acoustic intensity probe, near field noise measurement
  • estimation of vibro-acoustic parameters of technical devices, constructions and processes, e. g. HVAC devices and components, flowing medium sources (compressors, fans, vacuum pumps, pumps, air conditioning units etc.), noise reduction components
  • aero-acoustics – flow generated noise (turbulence, wakes, etc.)
  • spectrum analysis, order tracking, waveform recording, transient capture and SRS
  • diagnostics of technical problems of constructions and machines, rotating machinery analysis
  • modal testing
  • sound quality analysis – psycho-acoustics (e. g. according ISO532A, B)


Provided results

  • simultaneous 4 to 6 channel measurement of acoustic pressure and vibration acceleration, 24 bit resolution, dynamic range 115 dB, 84 kHz sampling
  • acoustic pressure measurement with A, B and C weighting filters and fast, slow and impulse time weighting, dynamic range: 16.6 to 140 dB, frequency range 6.3 Hz to 20 kHz
  • FFT analysis, with evaluation of FFT RMS, Pwr, PSD, ESD, Peak, P-P, FFT spectra (up to 6400 lines, 16 mHz resolution), order tracking, rotating machinery analysis
  • 1/3 (8 Hz to 16 kHz) and 1/1 (6.3 Hz to 20 kHz) octave analysis
  • sound meter complies with EN 61672-1 and provides sound evaluation according to ISO 1996-2 and ISO 9612
  • acoustic intensity according to EN 61043, EN ISO 9614-1, ISO 9614-2 (50 Hz to 10 kHz)
  • acoustic power
  • vibration acceleration measurement: 4 sensors, 1 to 3 directions


  • TTS eko s.r.o. Trebic (Examination of noise reduction at dispatching centre of ORC cogeneration unit, Character of noise produced by ORC cogeneration unit) (2005)
