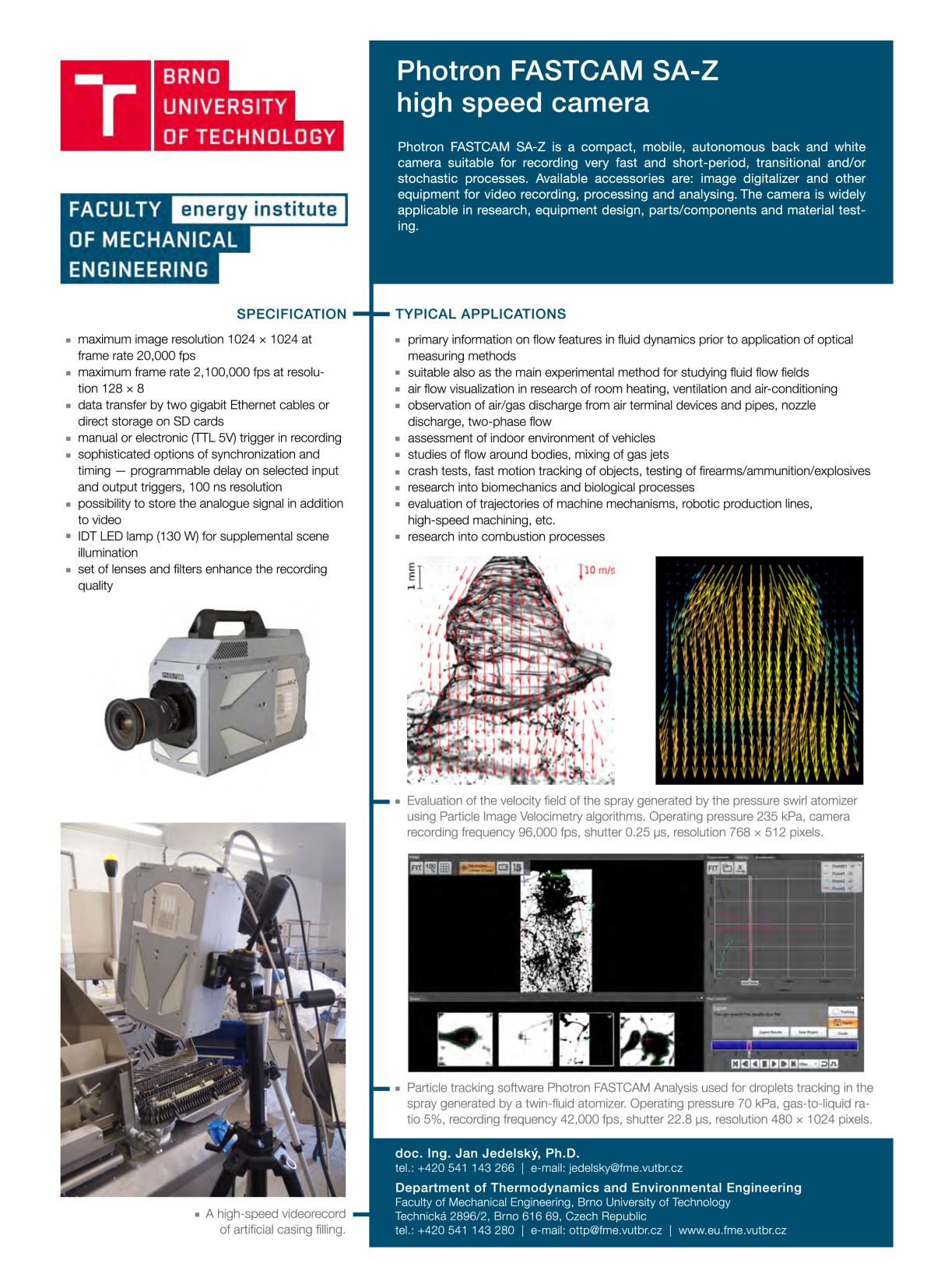

Photron FASTCAM SA-Z high-speed camera
Photron FASTCAM SA-Z is a compact, mobile, autonomous black-and-white camera suitable for recording very fast and short-period, transitional and/or stochastic processes. Available accessories are: image digitalizer and other equipment for video recording, processing and analysing. The camera is widely applicable in research, equipment design, parts/components and material testing.
- maximum image resolution 1024 × 1024 px at frame rate 20 000 fps
- maximum frame rate 2,100,000 fps at resolution 128 × 8 px
- data transfer by two gigabit Ethernet cables or direct storage on SD cards
- manual or electronic (TTL 5V) trigger in recording
- sophisticated options of synchronization and timing, programmable delay on selected input and output triggers, 100 ns resolution
- possibility to store the analogue signal in addition to video
- IDT LED lamp (130 W) for supplemental scene illumination
- set of lenses and filters enhance the recording quality
- primary information on flow features in fluid dynamics prior to application of optical measuring methods
- suitable also as the main experimental method for studying fluid flow fields
- air flow visualization in research related to room heating, ventilation and air-conditioning
- observation of air/gas discharge from air terminal devices and pipes, nozzle discharge, two-phase flow
- assessment of indoor environment of vehicles
- studies of flow around bodies, mixing of gas jets
- crash tests, fast motion tracking of objects, testing of firearms/ammunition/explosives
- research into biomechanics and biological processes
- evaluation of trajectories of machine mechanisms, robotic production lines, high-speed machining etc.
- research into combustion processes
Evaluation of the velocity field of the spray generated by the pressure swirl atomizer using Particle Image Velocimetry algorithms. Operating pressure 235 kPa.
Particle tracking software Photron FASTCAM Analysis used for droplets tracking in the spray generated by a twin-fluid atomizer. Operating pressure 70 kPa and gas-to-liquid ratio 5%.
High-speed video which captures a gas discharge from the pressure tank through the nozzle using Schlieren visualization technique.
Kerosene sprays generated by three different pressure-swirl nozzles for jet aircraft engines.
- Mlkvik M., Stähle P., Schuchmann H. P., Gaukel V., Jedelský J., Jícha, M. Twin-fluid atomization of viscous liquids: the effect of atomizer construction on breakup process, spray stability and droplet size, International Journal of Multiphase Flow 77 (2015) 19–31
- Zaremba M., Weiß L., Malý M., Wensing M., Jedelský J., Jícha M. Low-pressure twin-fluid atomization: Effect of mixing process on spray formation, International Journal of Multiphase Flow (in press), doi: 10.1016/j.ijmultiphaseflow.2016.10.015
Jan Jedelsky, Ph.D., Associate Professor
phone: +420 54114 3266 | e-mail: jedelsky@fmevutbrcz
Energy Institute, Department of Thermodynamics and Environmental Engineering
Faculty of Mechanical Engineering, Brno University of Technology
Technická 2896/2, 616 69 Brno, Czech Republic
